Navigation Views

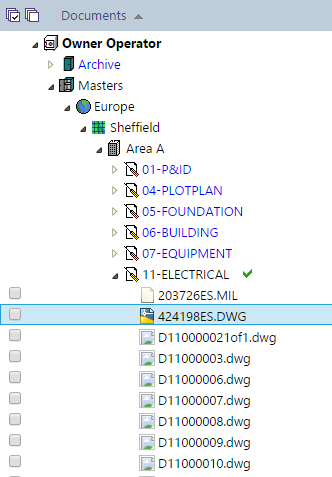

Navigation views are different ways of viewing a vault for different purposes. Each view displays documents organized in a hierarchical tree structure like Windows Explorer, similar to the following figure. The tree structure is determined by a predefined set of properties. You can use Navigation views to find and select documents according to the property values of the documents. Navigation views help you to find documents based on whatever information you know about the documents that you want to find.
Finding documents with Navigation views is often quicker and easier than finding documents by searching. All Navigation views display only the latest, released revision of documents. Status icons at the left edge of the views show the current workflow status of documents. For descriptions of the possible icons, see Navigation View Icons.
You cannot modify the configuration of Navigation views. Navigation views are configured by a System Administrator and may display:
-
Different icons to represent each folder level
-
Specific document types only
-
Documents with specific property values only
-
Different columns of information in each view
All vaults have the following 14 views available by default:
The following list describes how you can use navigation views to easily find the document you're looking for:
-
The Folders view displays where the documents are physically stored within the vault.
-
If you need to find a document but only know who is currently working on it, you can probably find it with the All To-Do Lists view or the Status – Person view.
-
If you only know what document type or file type the document is, then you can probably find it with the Document Type – File Type view.
-
If you know that the document has redlines, you can probably find it with the Redlined Documents navigation view.
A System Administrator may create additional views based on your organization's unique needs and vault configuration. Each vault can have any number of additional Navigation views, each presenting the contents of the vault in a different structure for different purposes or different groups of users.
The folder structure displayed by Navigation views is similar to that shown by Windows Explorer. However, Navigation views combine the folders that are shown in the left pane of Windows Explorer with the column data that is only shown in the right pane of Windows Explorer into a single view that displays both folders and columns in the same pane. Furthermore, file commands that appear on the Windows Explorer shortcut menu (for example, Print and Open With) also appear on the Meridian Enterprise Document shortcut menu.
Navigation views work similar to Windows Explorer, too. Depending on your security privileges and how the vault is configured, you may be able to:
-
Expand or collapse folders
-
Create and delete folders
-
Drag and drop folders and documents between vault folders or between the Navigation view and Windows Explorer or the desktop
-
Run commands on the contents of Navigation view folders (PowerWeb only)
Default Navigation Views
